SPX APV TR9 TITAINIUM PLATE HEAT EXCHANGER IDENTICALLY REPLACEMENT PROJECT
Original Application for APV TR9 Plate Heat Exchanger
Plate Material: 0.6mm Gr.1 Titanium (TR9GN)
Gasket Material: EPDM (TR9GN)
Original Plate Heat Exchanger Size
In view of Space limitation at Installation Space, the customer only allow “5 mm” size deviations on “In-build” Plate Heat Exchanger as to original drawing

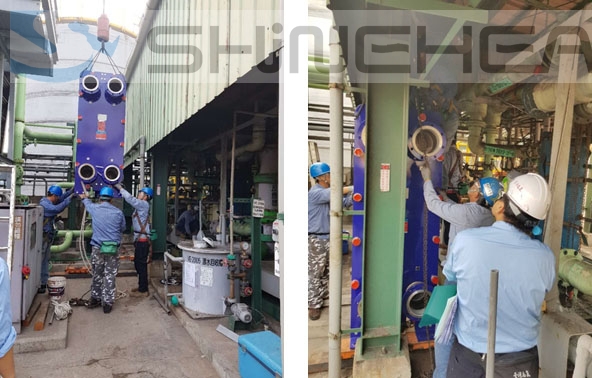

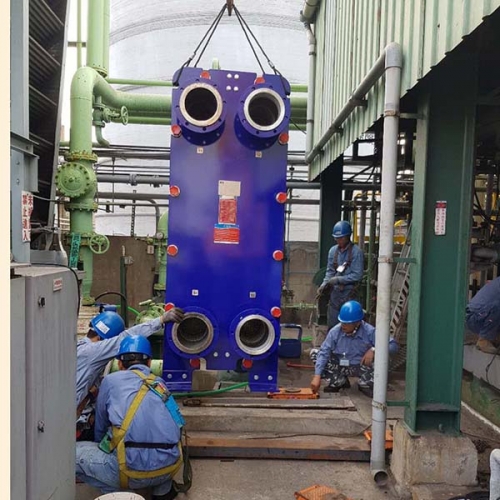

At Site, new plate heat exchanger installed and operated very successfully, the delivery time is Aug 2017, up to now it is running on good condition and performance.
Original Application for APV TR9 Plate Heat Exchanger
| Operating Conditions | |||||
| Liquid | Flow Rate | Temp. F | Pressure （PSIG） | Connection Size | Class |
| Sodium Hydroxide | 305,000 lb/hr | 111.8-95 | 7.3 | 8” | 150# ANSI B 16.5 |
| Cooling Water | 420,204 lb/hr | 90-101 | 14.6 | 8” | 150# ANSI B 16.5 |

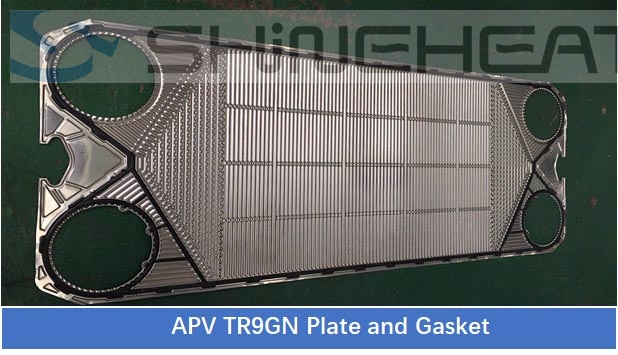

Plate Material: 0.6mm Gr.1 Titanium (TR9GN)
Gasket Material: EPDM (TR9GN)

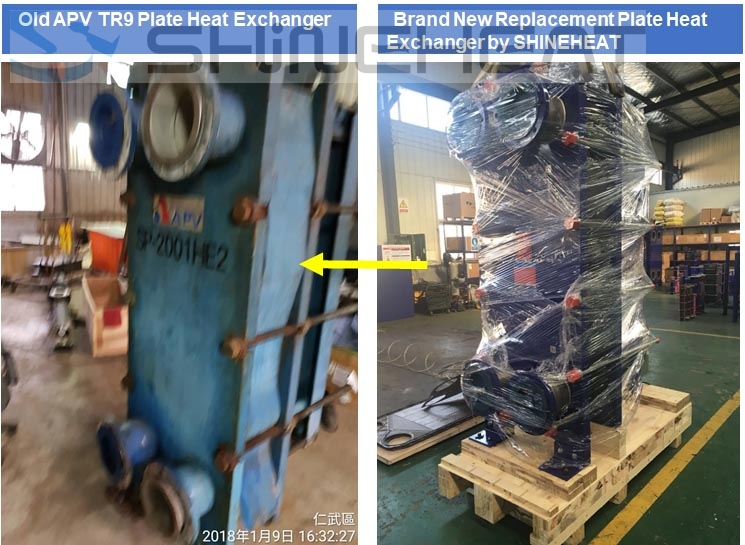

Original Plate Heat Exchanger Size

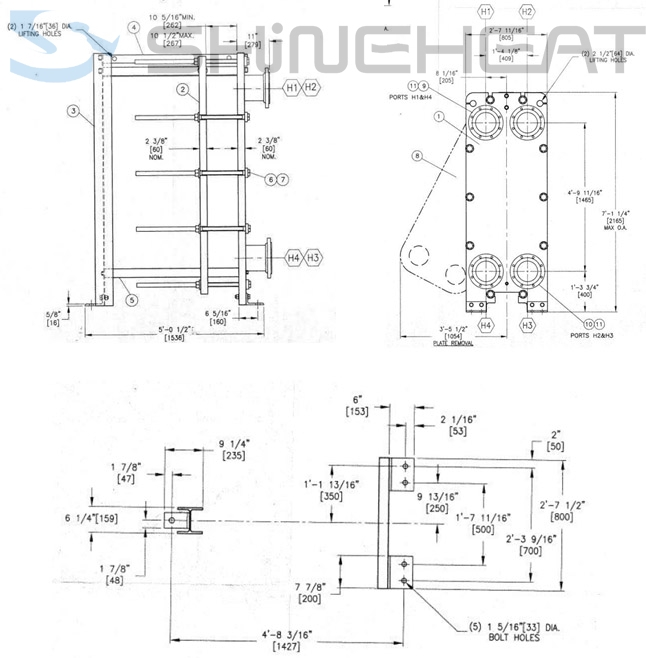

In view of Space limitation at Installation Space, the customer only allow “5 mm” size deviations on “In-build” Plate Heat Exchanger as to original drawing
At Site, new plate heat exchanger installed and operated very successfully, the delivery time is Aug 2017, up to now it is running on good condition and performance.
