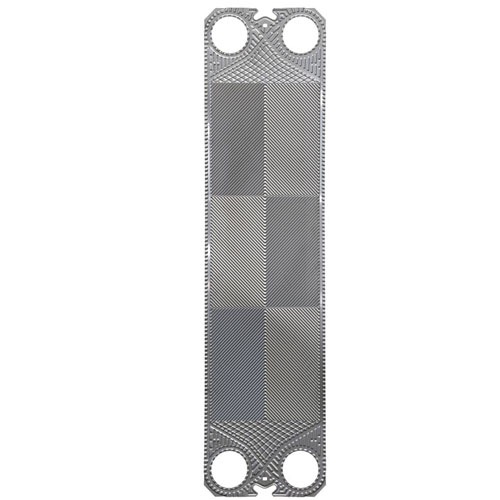

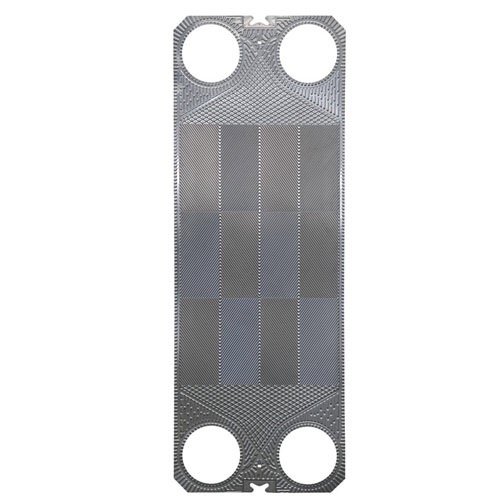

Spare Parts for Schmidt-API Plate Heat Exchanger (No mini order quantity, begin with ONE piece order!)
Identical repalcement Schmidt-API Plates and Gaskets are available for service and mantainance, Schmidt-API 100% identical plate heat exchanger also could be customzied produced.
Identical repalcement Schmidt-API Plates and Gaskets are available for service and mantainance, Schmidt-API 100% identical plate heat exchanger also could be customzied produced.
| SCHMIDT-API SPECIFICATION | ||||||
| Brand | Model | Depth of Groove (mm) | Dia. of Plate Hole (mm) | Pitch of Plate Hole (mm) |
Outline Dimension (mm) |
Transfer Area （㎡） |
| Schmidt-API | Sigma13 | 3 | φ70 | 135*590 | 250*710 | 0.13 |
| Sigma26 | 3.8 | φ72 | 174*981 | 304*1116 | 0.25 | |
| Sigma36 | 3.8 | φ88 | 218*1076 | 364*1230 | 0.37 | |
| Sigma56 | 3.5 | φ215 | 1048*325 | 133*600 | 0.51 | |
| Sigma76 | 3.5 | φ215 | 1423*325 | 1708*600 | 0.8 | |
| Sigma96 | 3.5 | φ215 | 1798*325 | 2083*600 | 1 | |
| Sigma66 | 3.8 | φ138 | 1470*290 | 1679*498 | 0.7 | |
| Sigma M136 | 3.7 | φ227 | 2081*425 | 2378*722 | 1.45 | |
| Sigma M106 | 3.7 | φ227 | 1675*425 | 1972*722 | 1.1 | |
| Sigma55 | 3.8 | φ110 | 272*1334 | 1518*440 | 0.58 | |
| Sigma M35 | 3.8 | φ110 | 944*272 | 1128*440 | 0.39 | |
| Sigma M25 | 3.8 | φ110 | 710*272 | 894*440 | 0.27 | |
| Sigma35 | 2.4 | φ110 | 944*272 | 1128*440 | 0.39 | |
