Description

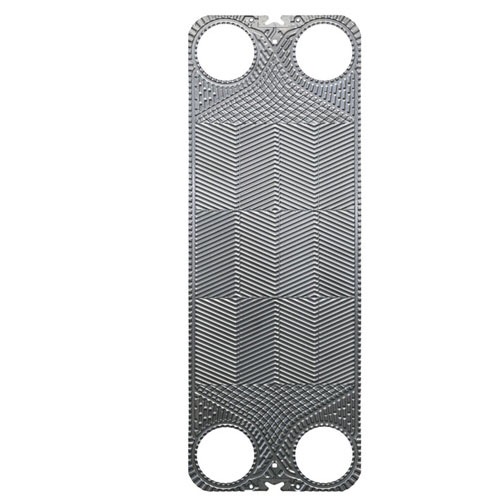

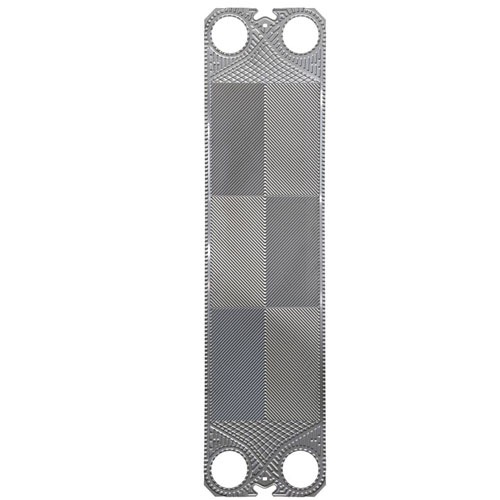

Spare Parts for Alfa Laval Plate Heat Exchanger (No mini order quantity, begin with ONE piece order!)

Identical repalcement Alfa Laval Plates and Gaskets are available for service and mantainance, Alfa Laval 100% identical plate heat exchanger also could be customzied produced.

PLATE AND GASKET SPECIFICATION
Brand	Model	Depth of Groove (mm)	Dia. of Plate Hole (mm)	Pitch of Plate Hole (mm)	Outline Dimension (mm)	Transfer Area （㎡）
Alfa Laval	M3	2.5	φ29	357*60	429*125va	0.032
	M6M	3	φ58	640*140	747*247	0.15
	M6B	2	φ59	640*140	747*247	0.15
	TS6	4	φ68	380*203	506*328	0.0856
	TL6B	2	φ58	1036*140	1148*248	0.25
	M10M	4	φ98	719*223	870*370	0.25
	M10B	2.6	φ97	719*223	870*370	0.25
	TL10B	2	φ109.5	1338*218	1500*373	0.5
	TL10P	3	φ105	1338*218	1500*373	0.5
	M15M	4	φ140	1294*298	1497*496	0.65
	M15B	2.6	φ140	1294*298	1498*496	0.65
	TL15B	2	φ155	2035*228	498*2250	1
	M20M	4	φ205	1479*353	1745*620	0.85
	T20B	2	φ209	1479*353	1749*621	0.9
	T20P	3	φ210	1479*353	1749*621	0.89
	TS20	4	φ195	698.5*363	960*621	0.5
	AK20	4	φ200	931.5*365	1215*664	0.5
	P16	2.5	φ29	357*60	427*123	0.03
	P26	3	φ70	592*135	709*248	0.13
	P36	4.55	φ120	946*226	1124*400	0.32
	Clip6	4	φ51	859*130	998*244	0.18
	Clip8	4	φ78	1095*220	1245*370	0.37
	Clip10	4	φ104	1324*324	1496*494	0.63
	Clip15	4.1	φ150	1524*400	1747*620	0.91
	T2B	2.6	φ21	298*50	351*102	0.02
	T5B	1.9	φ55	546*101	643*193	0.05
	T5M	3.1	φ48	553*100	642*192	0.05
	T20S	7.5	φ170	1478*353	1740*616	0.8
	A15B/AM15B	2.5	φ160	1315*350	1552*587	0.71
	AM20B	4	φ210	1450*365	1750*669	0.86
	T8M	4	φ50	193*608	331*749
